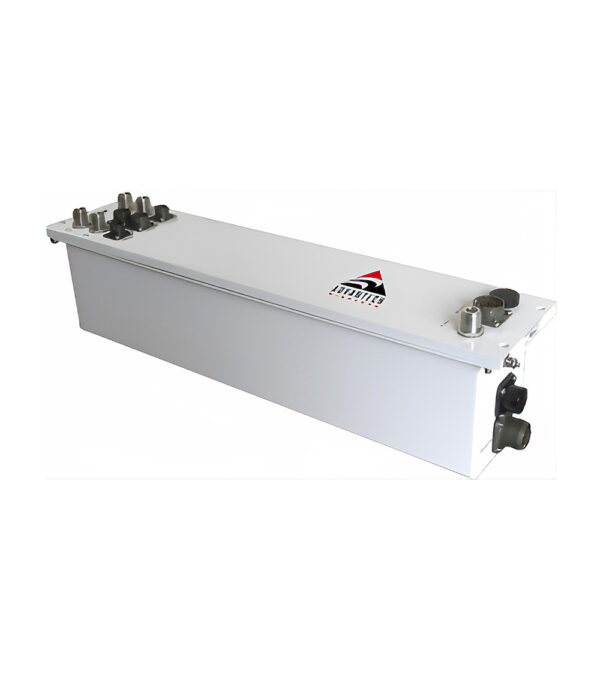

C-Band HP Converters Outdoor Series

Features


  • 70 MHz or 140 MHz IF
  • C-Band (5.85-6.425GHz) and CX (5.85-6.725GHz)
  • 125 kHz step size
  • Superior phase noise performance
  • Built-in internal reference with auto-sensing
  • On-site reference aging correction capability
  • High linearity
  • RS232, RS485 and Ethernet interface with SNMP and Web Interface

Overview


The Advantech Wireless C-band series of converters uses the latest technology in conversion, local and remote control thus providing the ultimate in performance and user friendly operation at a very competitive price.

The spectral purity, low phase noise and stability exceed the requirements of all major international satellite network operators.

Remote management interfaces ensures complete flexibility of integration into existing or new installations. The RS485 remote interface will provide full set-up and fault monitoring facilities. Ethernet option will allow the operator to pilot system operation either through SNMP or Web based interface.

The system reference guaranteeing conversion function’s accuracy can optionally be provided externally, internally as a highly stable temperature compensated oscillator, or with auto-detection capacity that will use internal reference only in the absence of an externally provided one.

The C-band series of converters provides an industry leading MTBF of over 150,000 hours.

Options


  •  140 MHz IF Frequency
  • 50 ohms IF impedance
  •  1:1 Redundancy
