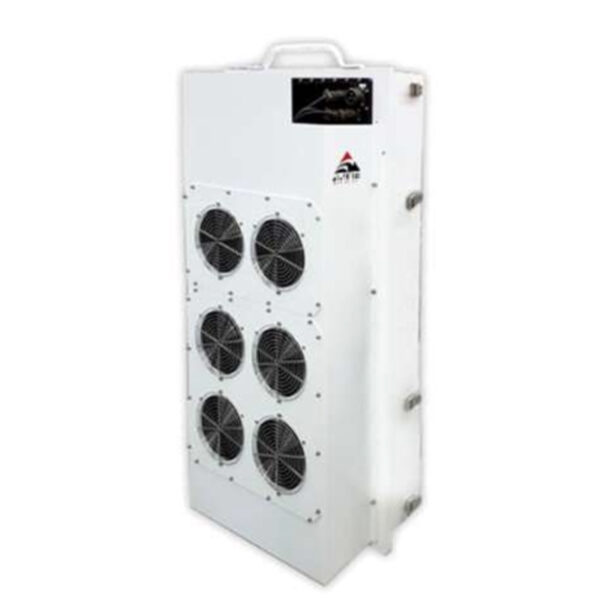

600W to 1000W
AWMA-STM series
Sapphire Blue Line

Features

• Full range of output power up to 1000W in a single package
• High linearity
• Unconditionally stable at any load VSWR
• Redundant ready with no external controller
• M&C capability via RS232/485
• Infinite VSWR protection with automatic high reflected power shutdown
• Forward and Reflected power monitoring
• Output Sample Port
• Redundant Systems shipped fully tested, assembled and tested
• Weatherproof construction

Overview

Advantech Wireless S-Band line of Amplifiers is intended for satellite up-link applications. The design of these units is based on Advantech Wireless proven techniques resulting in high linearity and operating efficiency. Conservative thermal design contributes to the high MTBF for these units. Full monitor and control is provided via the serial or Ethernet ports. Special features such as automatic over-temperature shutdown and high-reflected power protection contribute to a trouble free operation.

The AWMA-S series is available in output power from 600W to 1000W. Higher power operation may be provided using external phase combining techniques offering an output power up to 1500W. Please contact factory for more details.

The full set of accessories made available will facilitate the integration of these units in any application.

Options

• Remote M&C panel
• Phase combined systems for higher power
• Ethernet/SNMP
