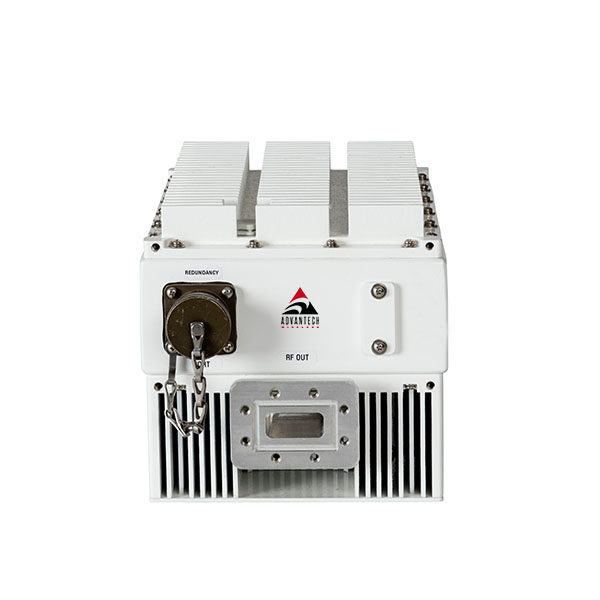

X-Band 20W/25W/40W/50W GaAs BUC/SSPB/SSPA Sierra-X Line

Sierra-X Line
X-Band GaAs SSPA BUC



Overview

The Sierra-X Line SSPAs / BUCs are an ideal solution for both mobile and fixed Communication terminals. The Sierra-X Line SSPAs / BUCs are designed for high efficiency resulting in an optimal compact form factor with high performance and reliability. With advanced customer interface and HTTP embedded web page, the operator is able to monitor and control the BUC and the System Redundancy.

X-Band GaAs: 20W / 25W / 40W / 50W

Features

  • Compact size
  • Available in AC or DC
  • Up to 50W of RF Output Power
  • Up to 25W of Linear power
  • Built-in monitoring of critical parameters such as: RF power detection, mute control, over temperature shutdown, summary alarm
  • IP55 rated housing and fan (weather proof construction)
  • M&C Interfaces included: RS485, RS232, Ethernet and dry-contacts
  • WEB interface and SNMP monitoring
  • Redundant Ready
  • 1:1 and 1:2 built into the BUC eliminating external controller
  • Other frequency ranges available
  • Internal 10MHz reference
  • Optional output sample port
  • Optional Remote control unit
